Wireless Remote Controller

The wireless remote controller we supplied can be used not only for electric transfer cart, but also for various cranes, such as overhead crane, gantry crane, and some other equipment controlled by remote.

Chat Now Send Email

Products Description

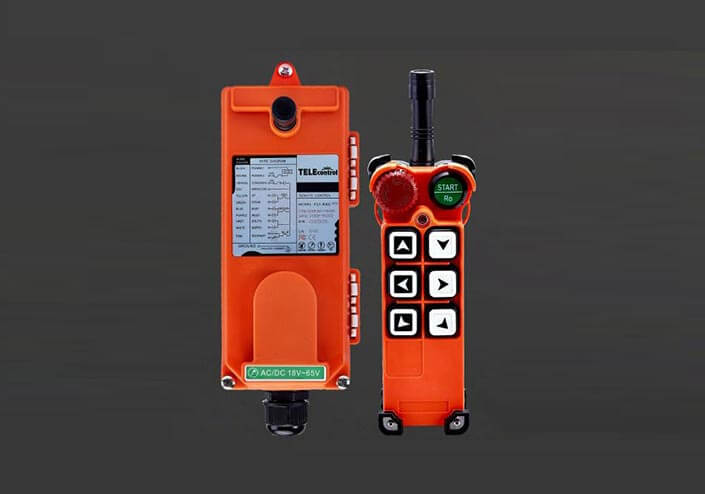

Features of model F21-E1 wireless remote controller :

1. Both transmitter and receiver.

2. Material: Glass-Fiber PA.

3. Enclosure protection class: IP65.

4. Frequency range: VHF: 310-331MHz (UHF: 425-446MHz is optional).

5. Transmitter power: ≤10dBm; Receiver sensitivity: -110dBm.

6. Transmitter power supply: 2 AA alkaline batteries; Receiver power supply 18-65V AC/DC, 65~440V AC/DC is optional.

7. Safety code 32 bits (4.3 billion).

8. Temperature range: From -40℃ to 85℃.

9. Control distance: Approximately 100m (200 meters is customized).

10. Package: Carton packing for each unit, carton or wooden box packing for large quantity.
